Precision Premier II Ferroelectric Tester

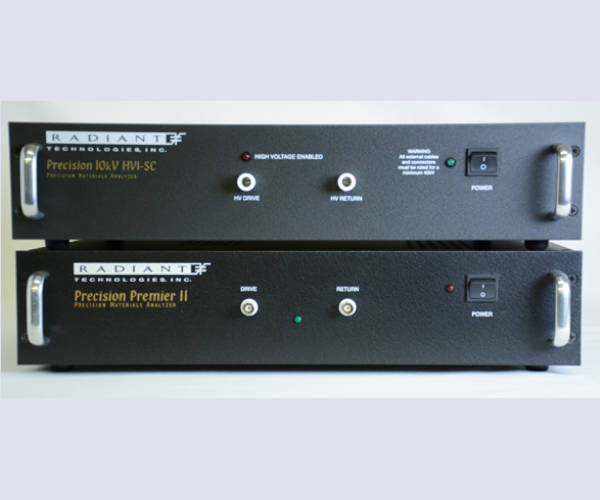

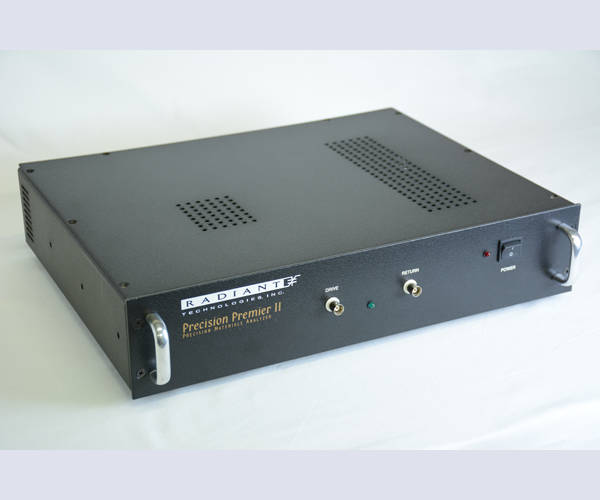

The Precision Premier II is an advanced tester that has a large test envelope in terms of frequency response, voltage range and accuracy. The Premier II has a fast hysteresis frequency rating of 250KHz at +/-10V built-in to the system. The Premier II execute tests to 100 kHz below 10 Volts, making it useful for both bulk and thin film capacitors. The Premier II is capable of measuring thin ferroelectric film capacitors down to 0.1 square microns. Using up to 32,000 points with 18-bit resolution. The Precision Premier II II is offered with a variety of internal amplifiers. The Precision Premier II is offered in a ±10V, 30V, 100V, 200V, and 500V built-in drive volt option. The Precision Premier II can be expanded to 10kV with the addition of a high voltage interface and amplifier. The Premier II tester makes testing of thin films and bulk ceramics a fast and simple process.
REQUEST A QUOTE
| Tester Parameter | Premier |
| Voltage Range (built-in drive voltage) | ±10V, ±30V, ±100V, ±200V or ±500V built-in |
| Voltage Range with an external amplifier and high voltage interface (HVI) | 10KV |
| Number of ADC Bits | 18 |
| Minimum Charge Resolution | 0.80fC |
| Minimum Area Resolution (assuming 1 ADC bit = 1μC/cm2) | 0.080μ2 |
| Maximum Charge Resolution | 5.26mC |
| Maximum Area Resolution (assuming saturation polarization = 100μC/cm2) | 52.6cm2 |
| Maximum Charge Resolution with High Voltage Interface (HVI) | 526mC |
| Maximum Area Resolution (assuming saturation polarization = 100μC/cm2) w/o HVI | >100cm2 |
| Maximum Hysteresis Frequency | 250KHz @ 10V 50KHz @ 30V 50KHz @ 100V 50KHz @ 200V 2KHz @ 500V |
| Minimum Hysteresis Frequency | 0.03Hz |
| Minimum Pulse Width | 0.5μs |
| Minimum Pulse Rise Time (5V) | 400ns |
| Maximum Pulse Width | 1s |
| Maximum Delay between Pulses | 40ks |
| Internal Clock | 25ns |
| Minimum Leakage Current (assuming max current integration period = 1 seconds) | 1pA |
| Maximum Small Signal Cap Frequency | 1MHz |
| Minimum Small Signal Cap Frequency | 1Hz |
| Output Rise Time Control | 105 scaling |
| Input Capacitance | -6fF |
| Electrometer Input All Test Frequencies for all test at any speed | Yes |
| * The minimum area resolution under actual test conditions depends upon the internal noise environment of the tester, the external noise environment, and the test jig parasitic capacitance. | |
| *** Tester specifications are subject to change without notice. | |
